• Use Scenes: Research, Teaching, Second Development

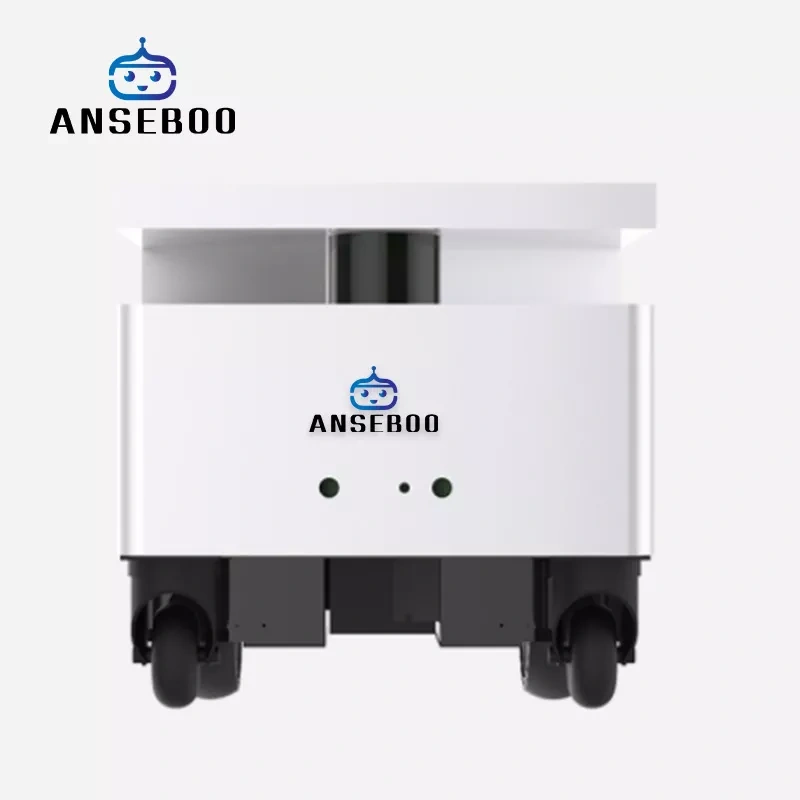

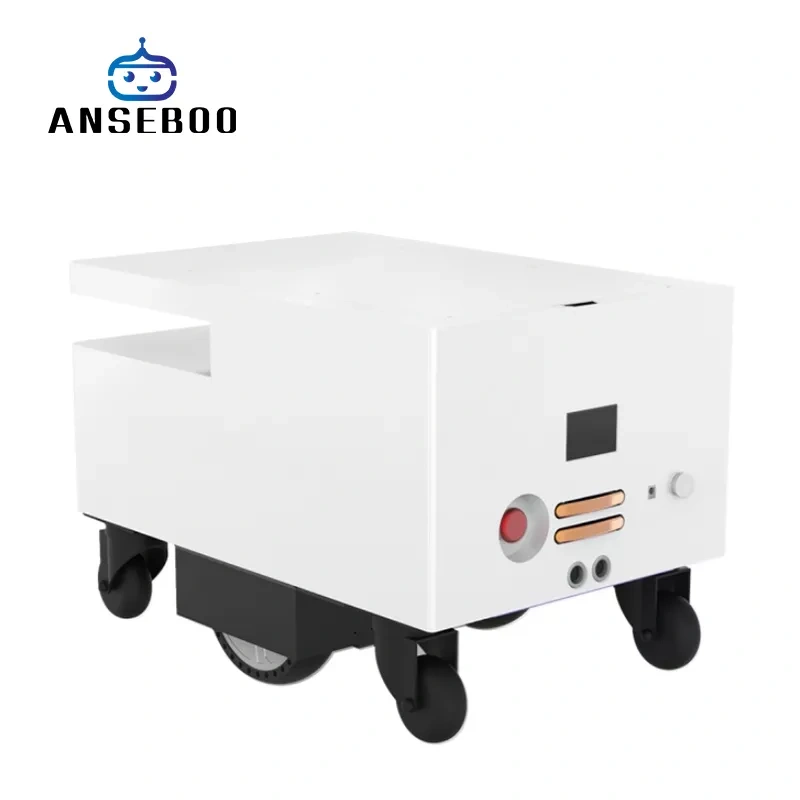

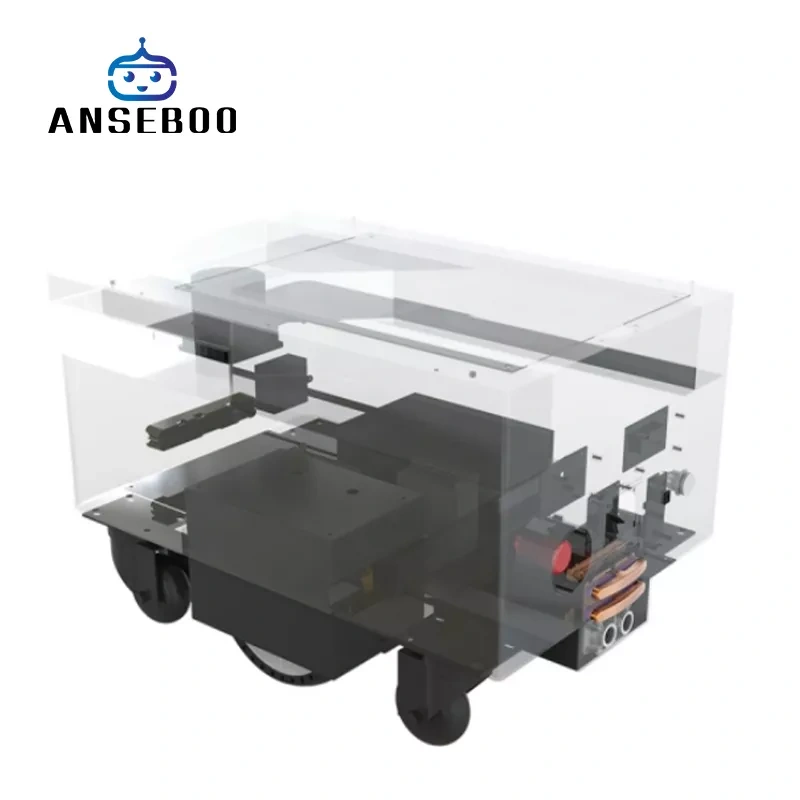

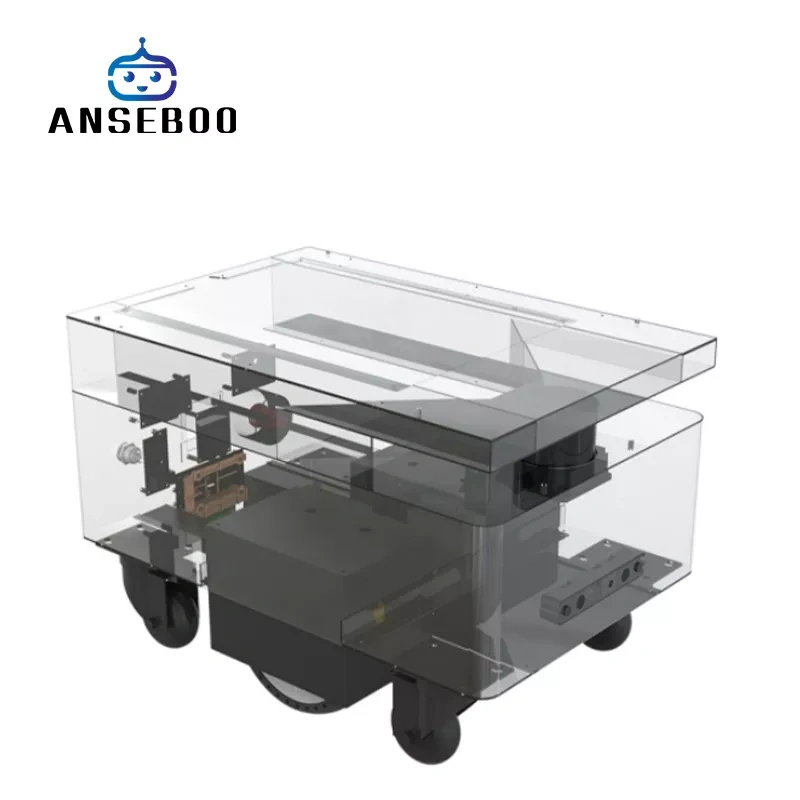

• Model: HA04
• Color: White
|
Overall size
|
540*360*360mm
|
| Product color |
White
|
|
Machine weight
|
30.0 Kg
|
| Load-bearing |
60.0 Kg
|
| Cruising speed |
0.2〜0.8m/s
|
| Battery life |
About 6 hours
|
| Charging time | 4 Hours |
| Charging current |
3A Max.
|
| Consumption current |
1.8A
|
| Rated power consumption |
70W
|
| Battery capacity |
20800 mAh 37V/10Ah(default),20Ah(optional)
|
| External power supply |
42V, 10A Max.
|
| Motor type |
BLDCM (Brushless Direct Current Motor)
|
| Suitable for |
Researchers & developers 18+
|
| System/Processor |
Linux/RK3128, Qual-core Cortex-A7, 1.2 GHz
|
| ROS Mainboard |
I5 ITX-H45-I526LVER:1.1A(4300U)
|
| RAM |
LPDDDR3,H5TQ4G63CFR-RDC/256X16/1G
|
| Flash Type |
Nand Flash, 8GB/KLM8G1GETF-B041
|
| Network |
Dual-frequency 2.4G&5G,WiFi&BT4.1 802.11B/G/N Wireless LAN, 11AC 5.15GHz-5.825GHz
|
