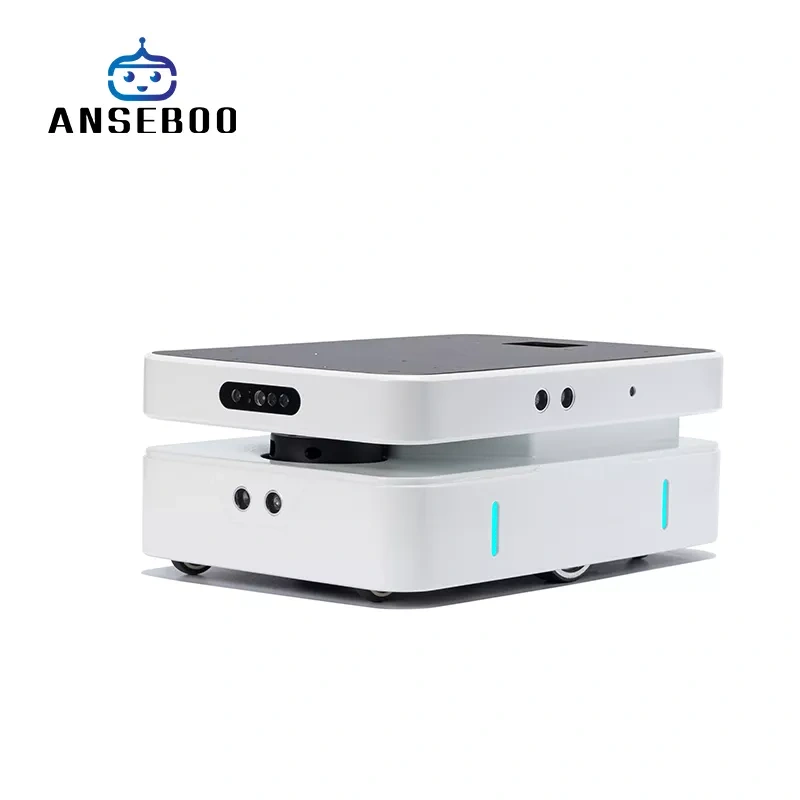

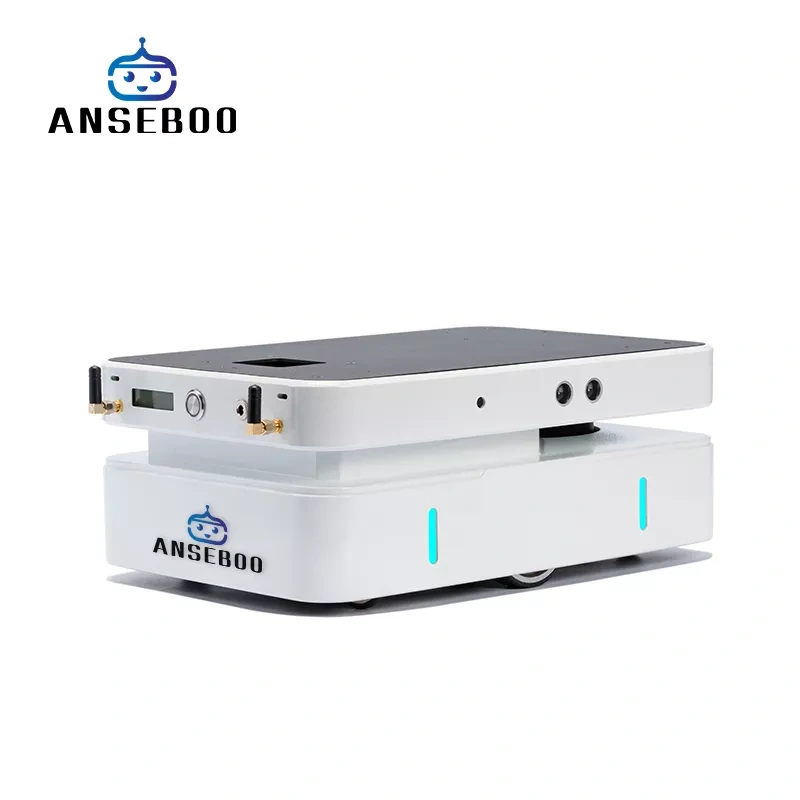

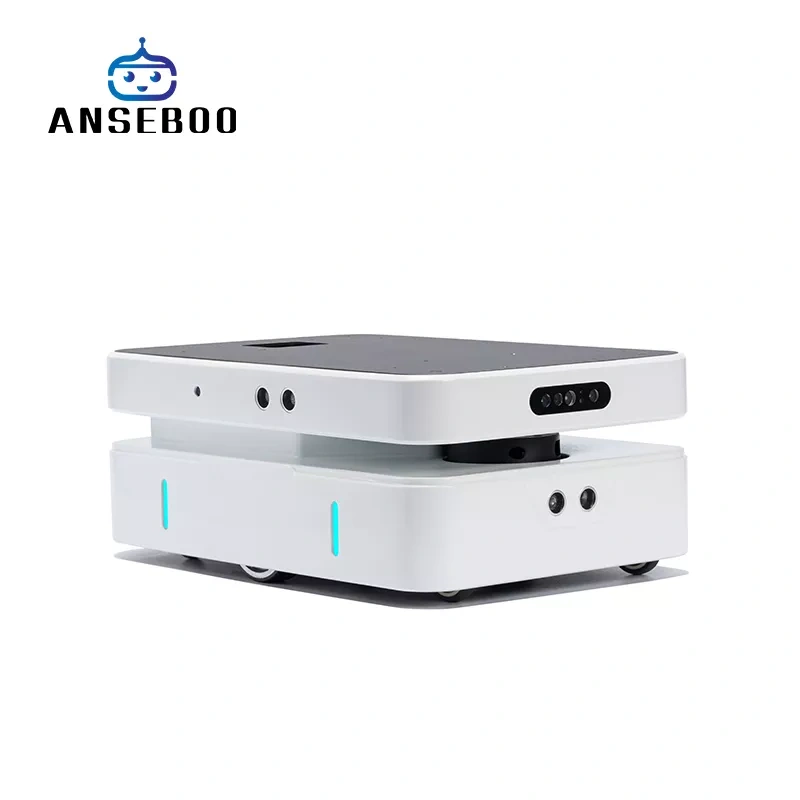

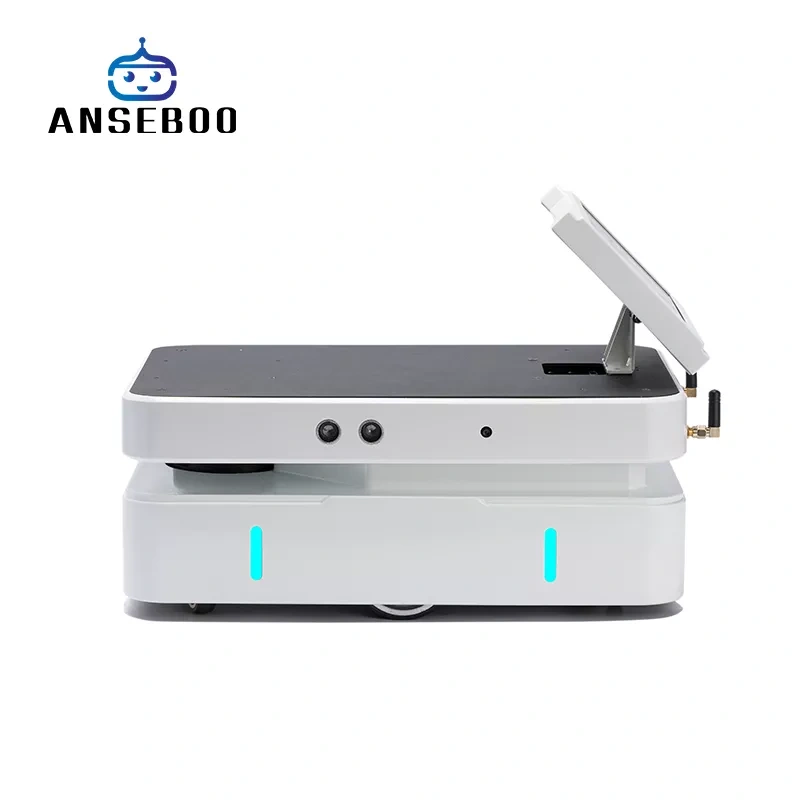

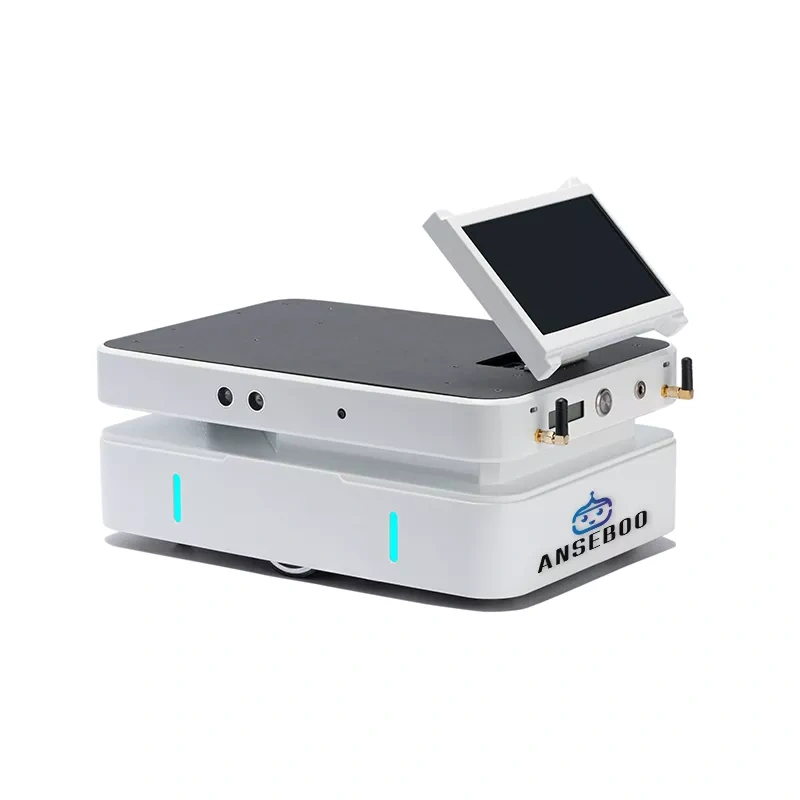

Anseboo Robot Chassis Gemini Smart Open Source Research And Education Robot Base

• Use Scenes: Research, Teaching

• Model: Gemini

• Color: White

  • Anseboo Robot Chassis Gemini Smart Open Source Research And Education Robot Base
  • Anseboo Robot Chassis Gemini Smart Open Source Research And Education Robot Base
  • Anseboo Robot Chassis Gemini Smart Open Source Research And Education Robot Base
  • Anseboo Robot Chassis Gemini Smart Open Source Research And Education Robot Base
  • Anseboo Robot Chassis Gemini Smart Open Source Research And Education Robot Base

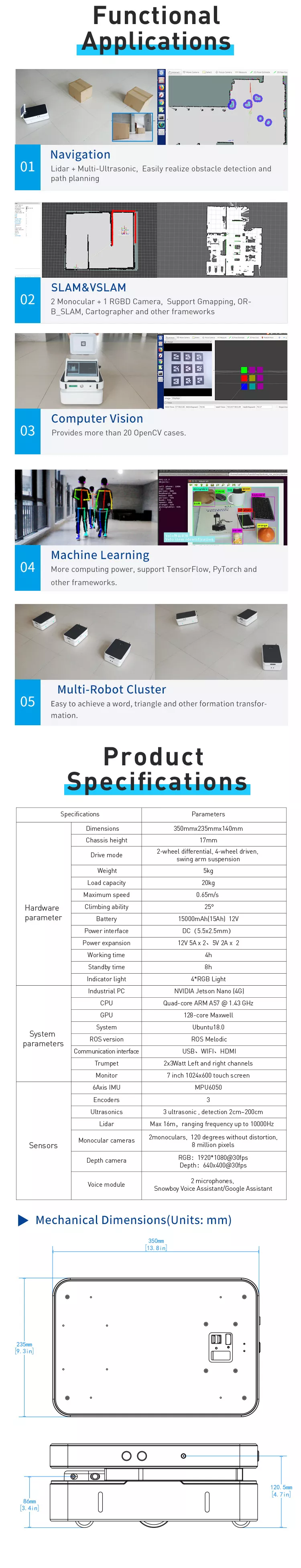

Description


Overall size
350*235*140mm (chassis height 17mm)
Product color
White
Machine weight
5.0 Kg
Load-bearing
20.0 Kg.
Cruising speed
0.65m/s, slope 5°
Battery life
About 4hours
Charging time 4 Hours
Battery capacity
15800 mAh 12V/15Ah
External power supply
12V/5A*2, 5V/2A*2
Motor type
BLDCM (Brushless Direct Current Motor)
Suitable for
Researchers & developers 18+
System/Processor
Ubuntu 18.0, Quad-core ARM A57@1.43 Ghz
ROS Version
ROS Melodic
Interface
USB/WiFi/HDMI
Ultrasonic wave
*3, probing distance 0.02-2.00 M.
Laser radar
Max. 16.00 M., probing frequency 10000Hz
Interface
USB/WiFi/HDMI
Monocular camera
*2, non-distortion120°, 8 MP
Depth camera
RGB, 1920*1080@30Fps, Depth, 640*400@30Fps



Package Delivery

 • Lead time: 5-15 work days
• Payment methods: Alibaba Pay、T/T、Paypal
• Payment terms: Order amount ≤ 20000$ needs to be paid in full; ≥ 20000$ can pay 50% deposit, the balance should be paid before delivery • Supply Ability: 5000pcs/week • Delivery methods: EXW, FOB • Shipping type: Air, Sea, Land, Express, Special line
